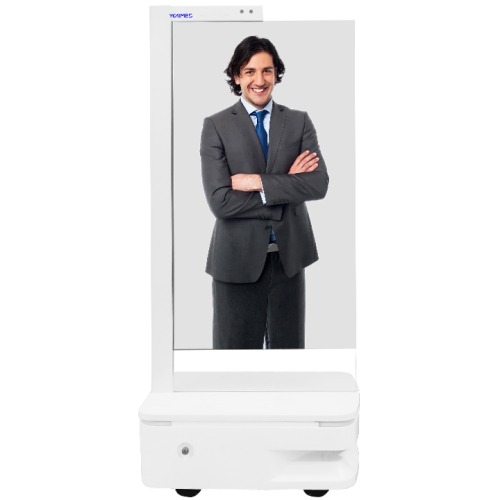

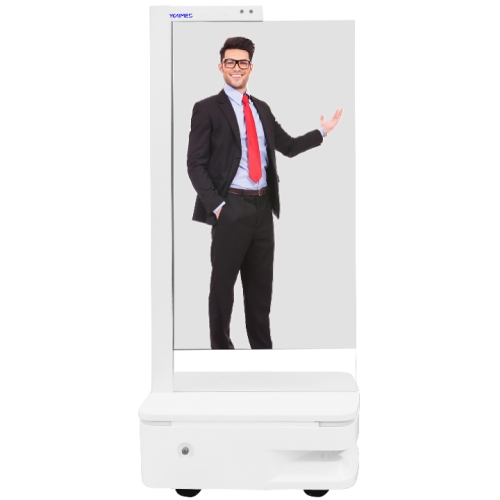

Smart robot system with obstacle avoidance, auto-navigating and turn-back recharge function
AI avatar robot has been used in: Exhibition event, museum and iconic restaurant.
 Easy use with voice or touch |
 7*24H service |
 High image quality without lagging |
 Scenario chatbot with local and remote data |
 Smart running robot |
 High efficiency and fast evolution |
| Screen size | 55 inches | |||||
| Main screen specifications |
Screen ratio: 16:9 Resolution: 1920 × 1080 Contrast ratio: 200000:1 Display area: 1209.6 (H) * 680.4. (V) (± 0.5mm) |
Backlight Type: OLED Color: 1.07 B/10 Bit Viewing angle: R/L 120 (min.), U/D 120 (min.) Brightness: 600/200 CD/㎡ (center point, typical) |
||||
| Touch specifications |
Touch technology: capacitive touch Touch point: ≥ 10 touch points |
Light transmittance: 45% Hardness: physically toughened class 7 explosion-proof glass |
||||
| Robot specifications |
Operating system: Android 5.1 Memory: 1G Storage: 8GB Screen size: 7-inch LCD screen, resolution 1024x600, multi-touch Remote function: support remote navigation status monitoring and remote online update of navigation system Planning and control system: planning mode: autonomous obstacle avoidance, track driving, waypoint Size: 795mm (L) * 560mm (W) * 325mm (H) |
Net weight: 70 kg Maximum load: 100 KG Environmental requirements: Operating environment: indoor, clean environment, no corrosive gas Operating temperature: 0 ℃ -55 ℃; UV resistance; Corrosion resistance: 5% -85% Storage temperature: -10 ℃ -65 ℃ Charging temperature: 5-40 ℃ (indoor) |
||||
| Charge & battery life |
Battery: Charging voltage: 43.2 V Capacity: 38.4V 25Ah Endurance: about 5 hours, the deployment of charging piles can achieve 7 * 24h service, standby time: about 10 hours Charging mode: automatic recharging, manual charging |
Adapter: Working voltage: 100 ~ 240VAC, 50/60Hz Charging point: Size: 375mm * 160mm * 355mm Weight: 4.35kg Input: 100-240V ~ 50/60 Hz Output: 43.2 V = = 5.0A |
||||
|
System configuration (Optional Windows) |
Processor: Rockchip RK3588,Big & Little core architecture: Quad-Core 2.4GHz Cortex-A76 + Quad-Core 1.8GHz Cortex-A55 GPU: Mail-G610 MP4 |
Memory: 4G standard (8G optional) Storage: 32G standard (64G/128G optional) OS: Android 12 (optional) |
||||
| Built-in speaker | Built-in 4Ω 10W * 2 | Power supply parameters | DC 12V/19V, AXT4pin 12V, support play upon power-on | |||
| Voice recognition module |
Array form: Front-end linear array Built-in algorithm: echo cancellation, hyperdirectional pickup, automatic gain, steady-state noise reduction Number of arrays: 8 Waterproof: not supported by silicon and circuit board Input power: 5V |
Connection: USB Weight: 0.39 KG Storage temperature: -10 ℃ -65 ℃ Storage degree: 10% -90% RH Composition: microphone board and main control board |
||||
| Structure | Protective glass: tempered glass (3MM tempered) | Housing material: sheet metal | ||||
| Installation method | Vertical placement | |||||
 When material difference meets new appearance requirement, mechanical design is far more than develop a drawing in the office. Our experienced engineer help you reach the ideal balance between workmanship and aesthetics. |
 Electronic engineer provides the tailored-to-budget and future-proof suggestion, you won't waste the money for short run or long run. |
 Well-trained aesthetics engineer ensure the presence of your image at the right level for communication with end users all the time. |
1. Proven expertise and experience
With over a decade of experience since 2012,Yangcheng Interactive AI Avatar Mobile Robot Manufacturer has built a solid reputation in the advertising equipment industry.
Our expertise ensures that you get reliable and cutting-edge solutions by working with us.
2. Comprehensive product range
We provide a diverse range of kiosks, including cashless payment kiosk,3D holographic digital human kiosk and lcd/olde digital avatar kiosk.
3. Customization capabilities
Kiosks are always different when software and use scenario different, we have powerful engineers to provide OEM/ODM services, tailored to your specific requirement.
4. Edge-leading manufacturing workmanship

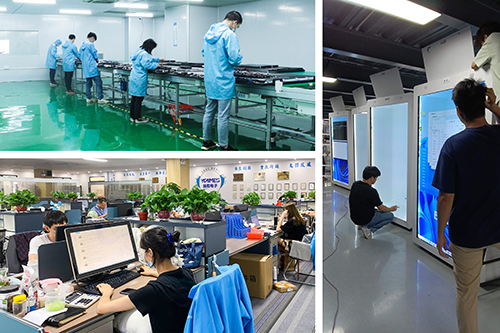

Our factory is equipped with advanced machines in Foshan, making use of the supporting supply chain, we guarantee that our products are manufactured to the highest standards of quality and reliability.
5.Flexible and competitive
There is always a read-to-fight team in our company. We are flexible on market testing support and good at cost control. Our support help you open market and win more market share continuously.
 |
Established in 2012,Guangzhou Yangcheng Electronic Co.,Ltd is a leading Interactive AI Avatar Mobile Robot manufacturer.
Our company consists of 3 bases in Guangzhou, Foshan and Nanning respectively, dedicating for hardware and software.
With the 120+ well-trained employees,8 R&D engineers and 18 quality control specialist with above 5year experience,
Our average production lead time is 10-20days.
Our product and solution covers 3D hologram box, OLED transparent display and LED/LCD display signage.
The main models are with 3C,CE,ROHS,FCC certificate. Products are exported to South East Asia, US, Europe and Middle East.
By closed cooperation with LG/SAMSUNG/GIGABYTE, we ensure 99.5% of our products running stably in its rated lifetime. We cooperated with notable enterprise/government agency like Alibaba Group,Dongfeng Honda Auto Group,Malaysia Airline etc. |
 |
 |
